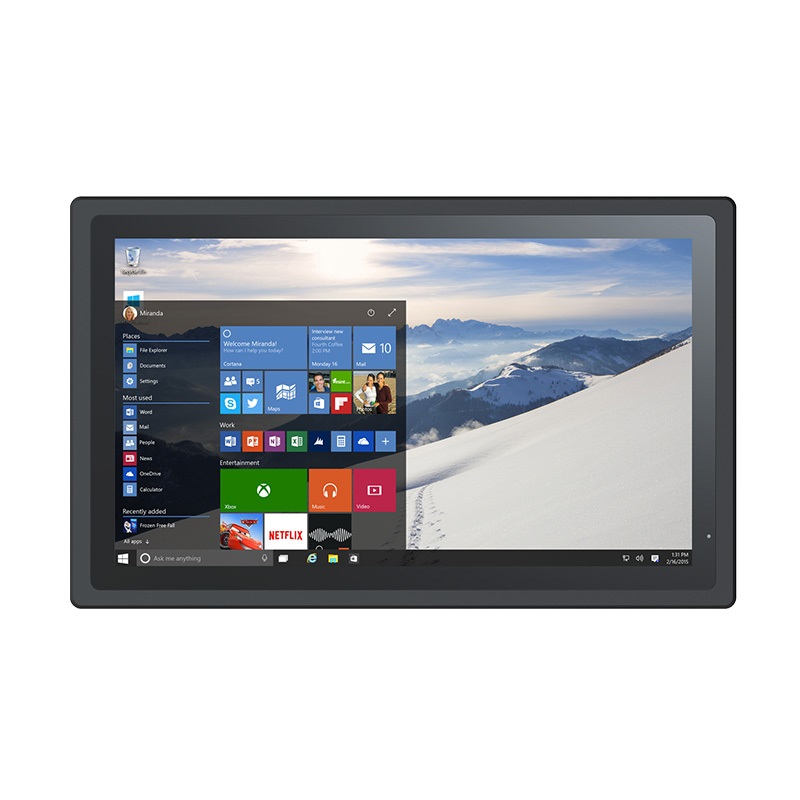

21.5 inch Fanless Industrial Touch Panel PC
21.5” FHD (1920*1080) Color TFT LCD Display
True-flat IP65 front bezel
Projected Capacitive Multi-Touch Screen
High Brightness 1000 nits
Intel Celeron J1900 Processor SoC
IP65 Front Bezel Design
Fanless Aluminum Case Design
VESA 100/50 Panel Mount Support
DC 12V Power input.
Model Number: EB-215LPPC
21.5 inch High Brightness Sunlight Viewable Fanless Touch Screen Panel PC
EB-215LPPC features a metal housing, extending product longevity, stability and reliability.
This Slim Panel Mount Touch Screen Computer is using top-quality industrial-grade LCD screen, which not only has prominent color representation, but also the high brightness of 1000 nit makes it readable under outdoor sunlight conditions.
With its unique All-In-One back cover and a state-of-art heatsink solution. It supports HMI and SCADA systems, and with the power input capped at 12V DC, the RESUN EB-215LPPC offer a VESA 100/75 standard mounting. Options include Panel Mount, Side Clip-on Mounting.
It works with all industrial applications. Favored by the military, vehicles, and outdoor kiosks industry.
| CPU | Intel® Celeron J1900 / 2.0GHz Quad Core processor |
| GPU | Integrated Intel® HD Graphics |
| Operating System | support Windows 7 / 10, Linux Ubuntu (optional) |
| RAM | 4GB DDR3, up to 8GB |
| Storage | 120GB mSATA (SATA2.0 or 2.5 inch HDD optional) |
| LCD | 21.5 inch FHD (1920*1080), 1000cd/m2 higher brightness, Sunlight readable |
| Touchscreen | 10-points multi touch capacitive touchscreen supporting glove and rain mode |
| Bluetooth | 4.0 BLE |
| WLAN | IEEE 802.11 a / b / g / n; 2.4GHz |
| Sound | Onboard ALC662 6-channel high fidelity audio controller, support MIC/Line-out, amplifier |
| 2 * Amplifier proposed using 2Ω 5W speakers | |
| Expansion | 1 × Mini-PCIE |

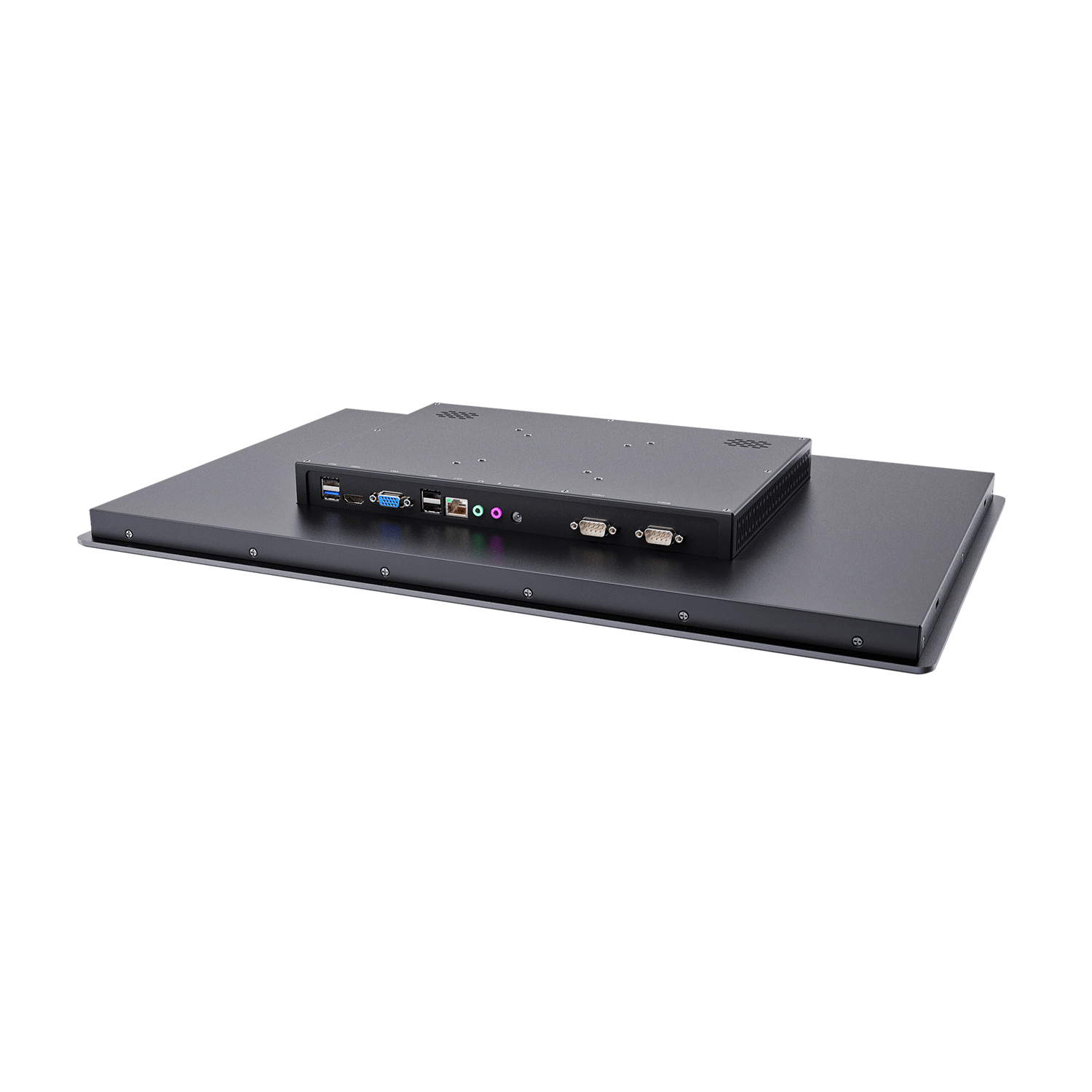

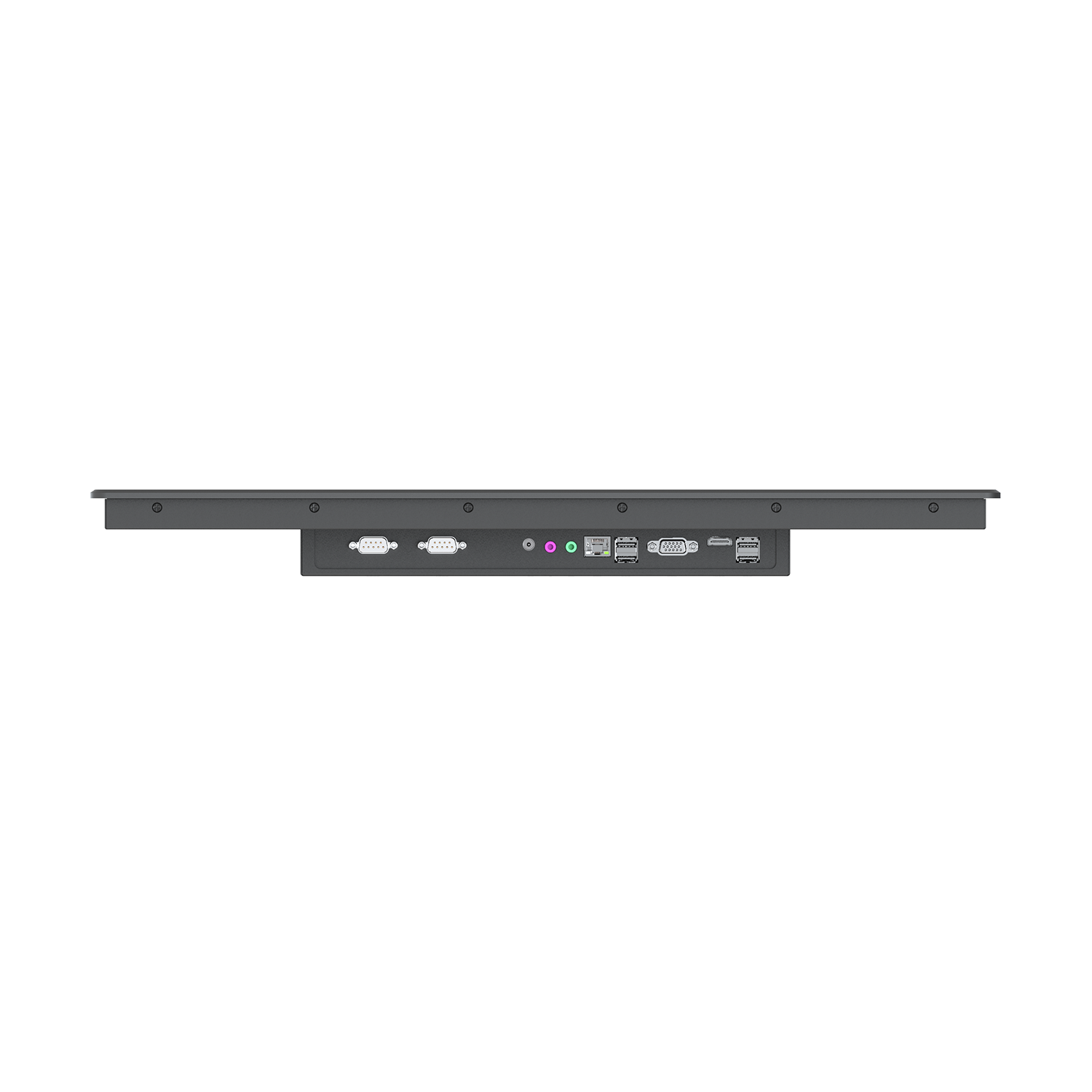

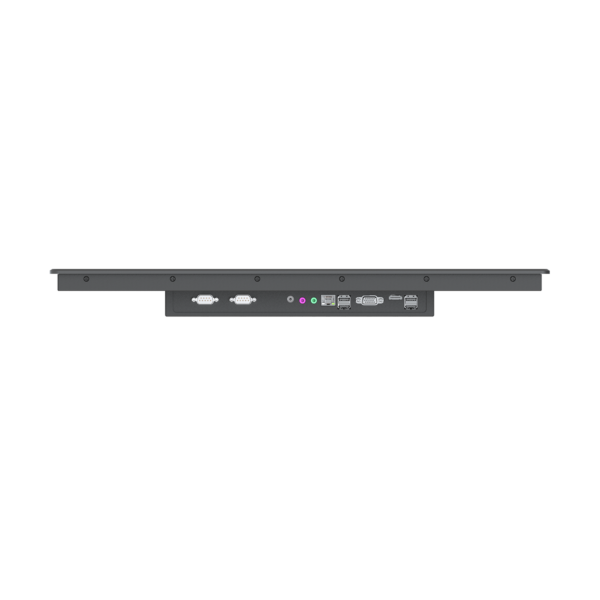

| Interfaces | 1 × HDMI |
| 1 × VGA | |
| 3 × USB 2.0 | |
| 1 × USB 3.0 | |
| 1 × LAN | |
| 2 × RS232 serial ports | |
| Watch dog | Windows 7/Windows 10/Linux |
| Power | DC 12V |
| Power consumption | ≤ 40W |

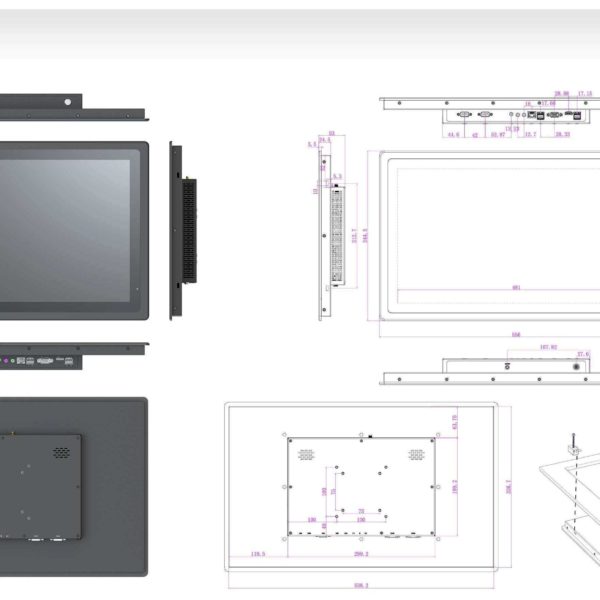

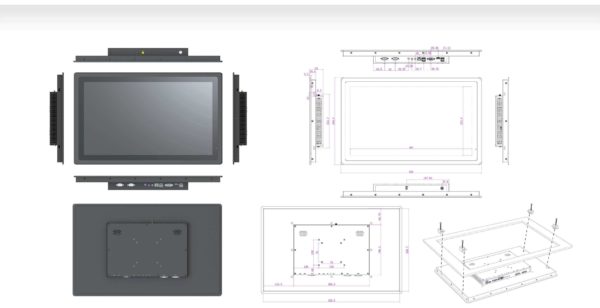

| Physical Dimensions | 556 x 344.5 x 53 mm |
| Environment | Dust resistance test: IP6x (front panel) |
| Water resistance test: IPx5 (front panel) | |
| Operating temperature: -10°C ~ 60°C (14°F ~ 140°F) | |
| Storage temperature: -20°C ~ 70°C (-4°F ~ 158°F) |
