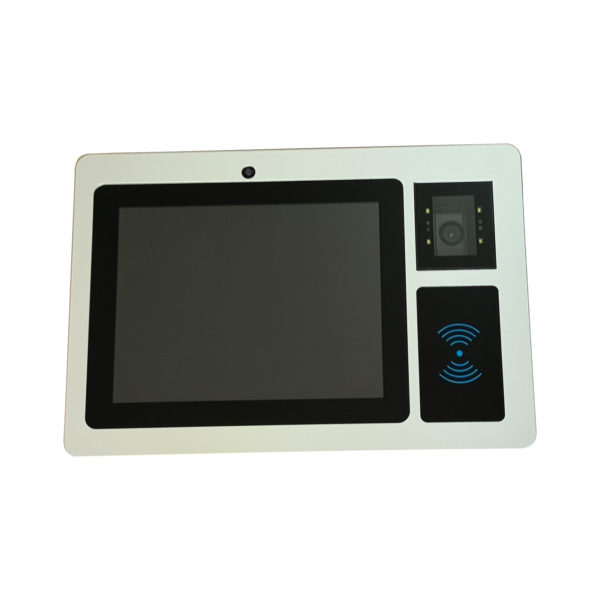

All-tempered glass front bezel, 12.1″ touch screen computer, Built-in RFID Reader
This slim design 12.1 inch Industrial Touch Screen Computer built-in RFID reader, As an intelligent all-in-one access control terminal that can read both IC and ID RFID reader.
This is Touch Screen Computer combine true flat front panel with fully tempered glass
to ensure the computer is secured against vandalism and protected against extreme environmental conditions.
| CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) | ||||
| Chipsets | Intel Bay Trail SOC | ||||
| RAM | 2GByte DDR3L-1600 | ||||
| Hard Drive | 32GB SSD | ||||
| Graphic | Intel HD Graphics(Sandy Bridge) | ||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | ||||
| LAN | Realtek RTL8111F , 1*10/100/1000MBit RJ45 Ports | ||||
| External Ports | HDMI out | ||||
| 3*USB2.0 , 1*USB3.0 | |||||
| 1* COM | |||||
| 1*RJ45 | |||||
| DB15 VGA | |||||
| Line out | |||||
| MIC | |||||
| M12 Power on/off | |||||
| DC-in(12V) input power | |||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | ||||
| 1*MiniPCI-E | |||||
| RFID | 125Khz / ID card (EM4100) | ||||
| 13.56Mhz / IC card (ISO14443A) | |||||
| Driver | Windows, Linux; | ||||
| Aspect Ratio | 16:10 | ||||
| Physical Resolution | 1280（W)*800(H) | ||||
| Brightness | 400 | ||||
| Touch Panel | 10-piont capactive touch screen | ||||
| Front Panel | IP65 | ||||
| Case | Aluminum ,steel sheet | ||||
