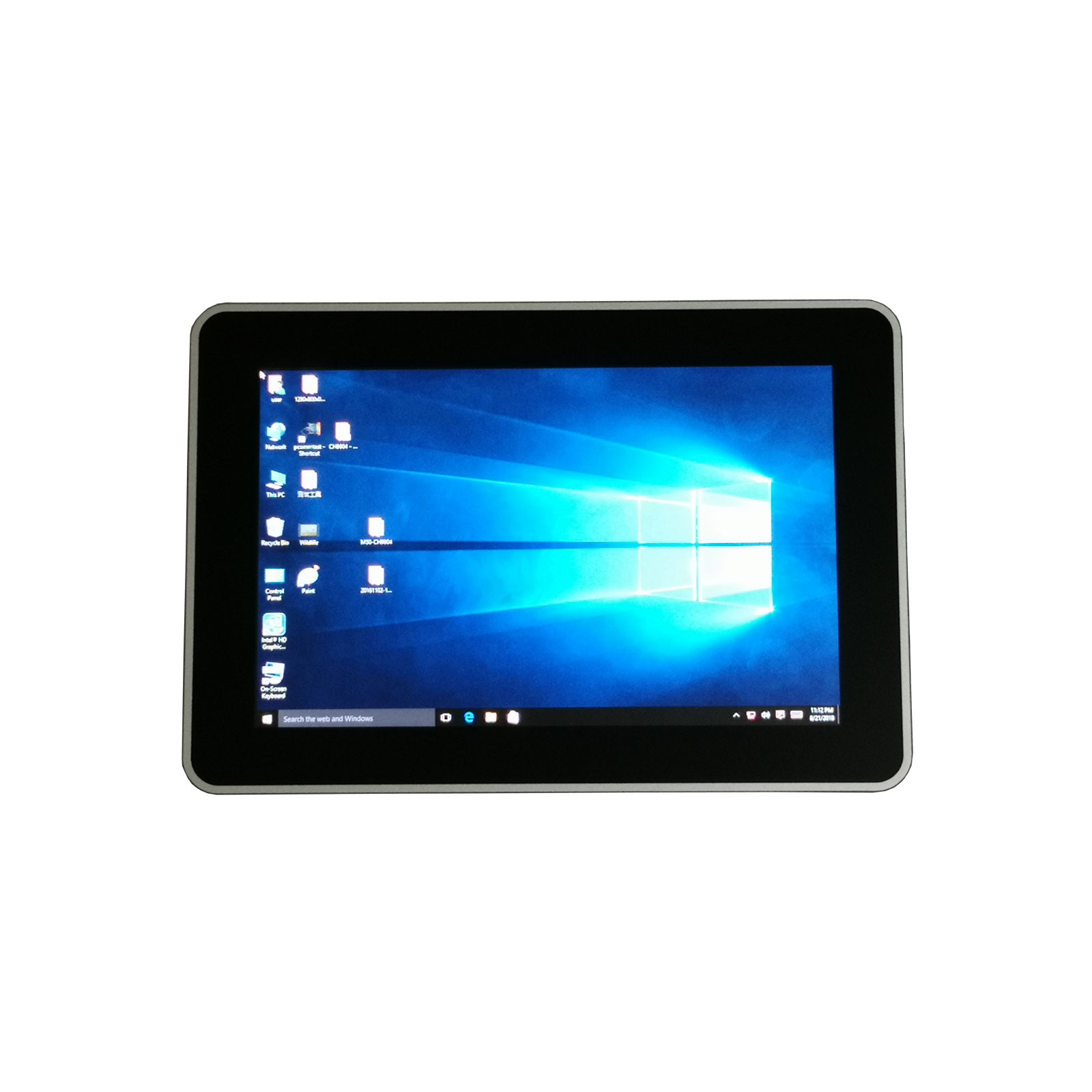

10.1 inch Waterproof Touch Screen Computer
The model # EB-101OEM Waterproof Touch Screen Panel PC is an ideal 10″ Capacitive Touch Screen control device for industrial environments where dust, water are present. 10.1 inch LCD display with a resolution of 1280 * 800. which has multi-touch projected capacitive touch screen.

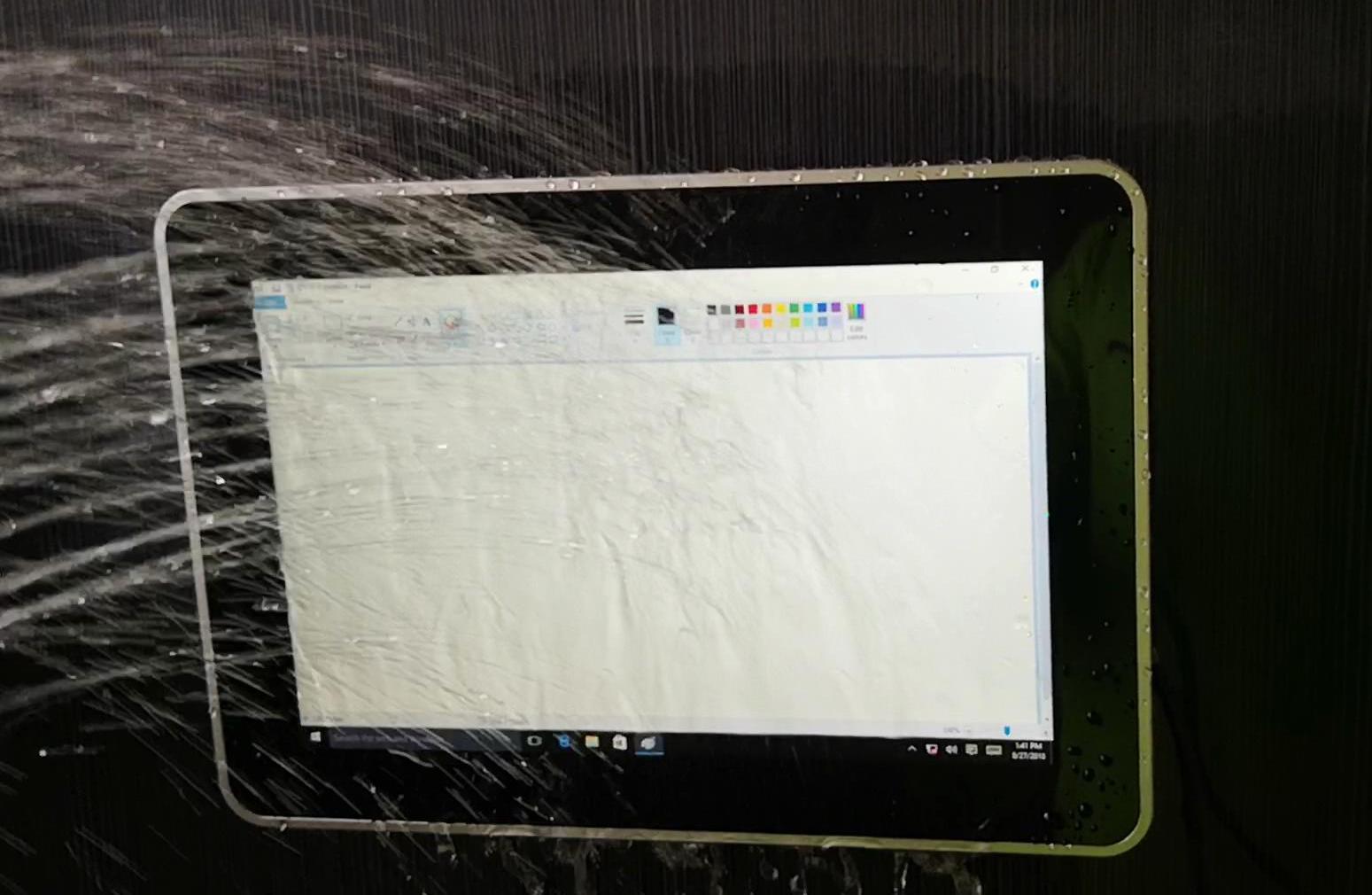

The M14 connectors sealed IP67 housing makes it ideal for food and beverage or meat processing environments. The fanless cooling design ensure that you can confidently place this waterproof panel pc into the most demanding workplaces.
| O/S | Linux / Windows OS support | |||||||
| CPU | Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
| Chipsets | Intel® Bay Trail SOC | |||||||
| RAM | 4GByte DDR3L-1600 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD Graphics (854 MHz) | |||||||
| Audio | Realtek HD ALC 662 | |||||||
| LAN | Realtek RTL8111E | |||||||

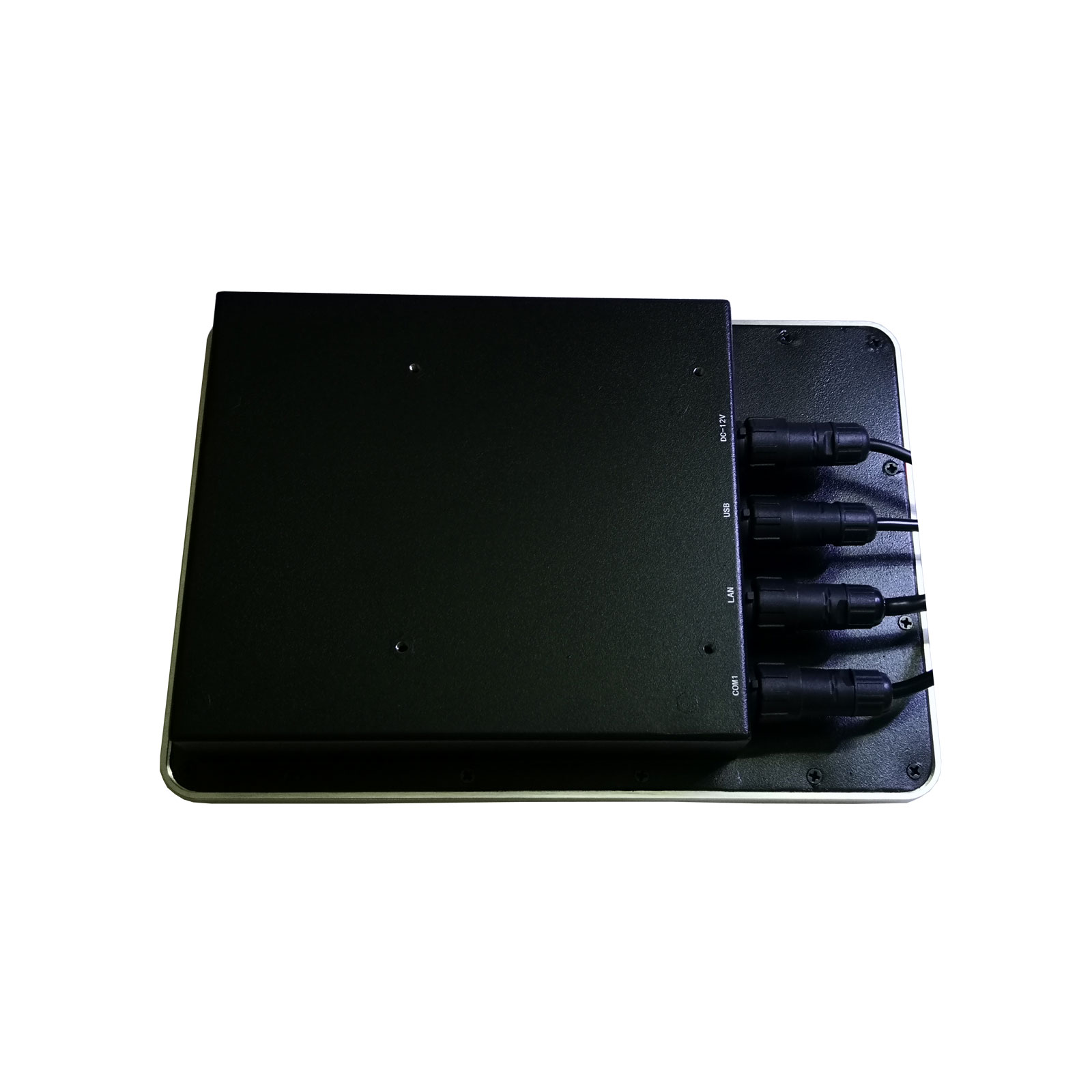

| External Ports (M14 IP67 sealed) | 1*LAN | |||||||
| 1*USB2.0 | ||||||||

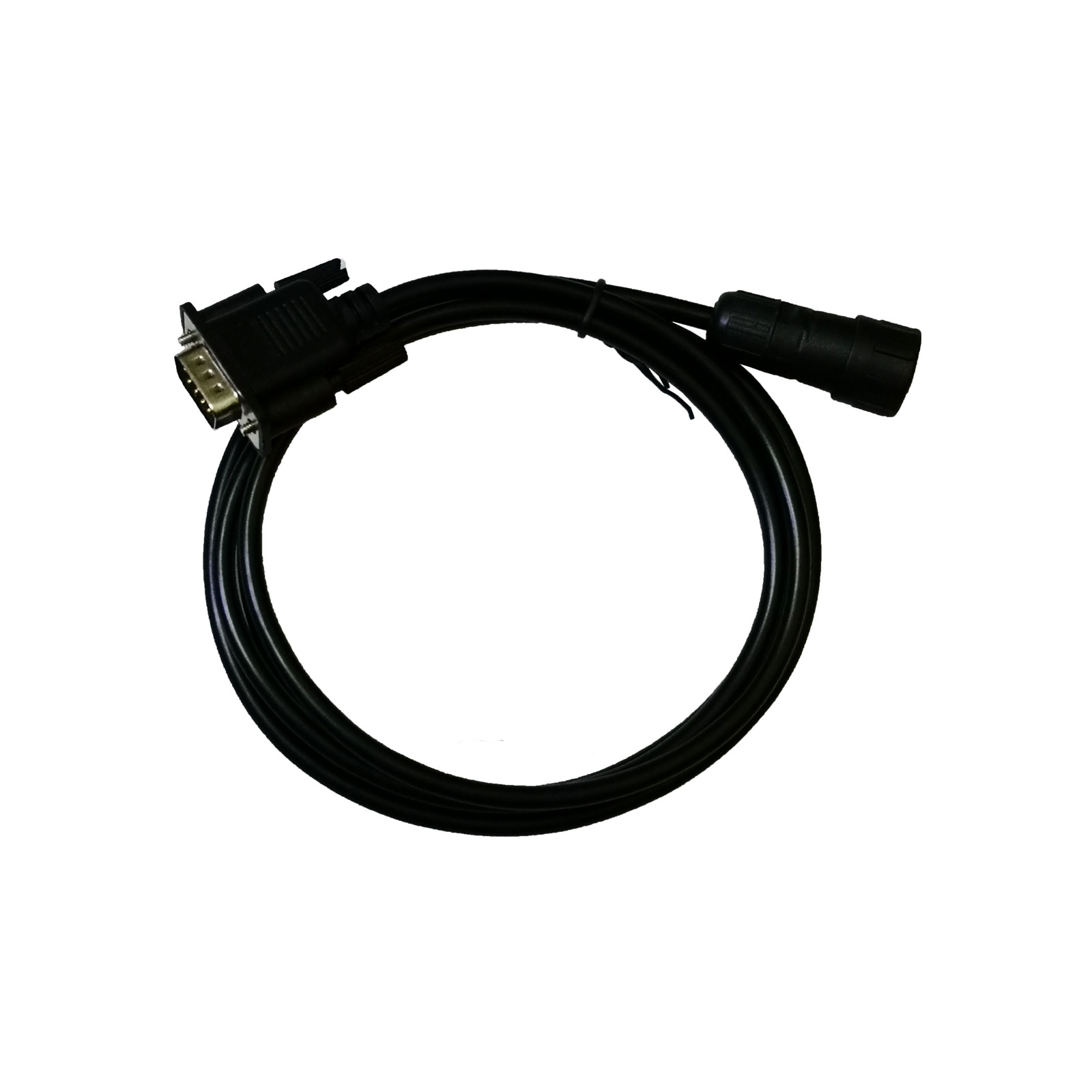

| 1*COM | ||||||||
| 1*DC-12V | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | DC-12v | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 216.96×135.6 | |||||||
| Aspect Ratio | 16:10 | |||||||
| Physical Resolution | 1280（W)*800(H) | |||||||
| Brightness | 300 cd/m² | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 85/85/85/85(L/R/U/D) | |||||||
| Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥6H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Protection grade | completely IP67 | |||||||
| Install | VESA100x100mm | |||||||
| Case | Aluminum | |||||||
| Size(WxHxD)(mm) | 270x186x50 | |||||||
Download
