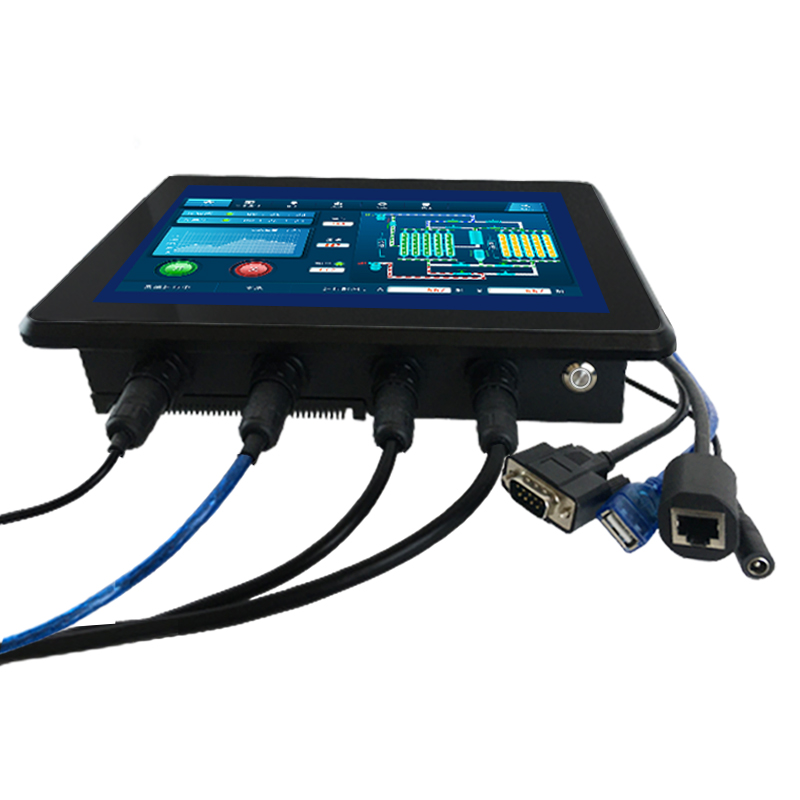

10.4″ Touch Screen Waterproof Computer
O/S | Linux / Windows | |||||||
CPU | Intel Celeron Processor J1900 (2M Cache, up to 2.42 GHz) | |||||||
Chipsets | Intel Bay Trail SOC | |||||||
RAM | 4GByte DDR3L-1600 | |||||||
Hard Drive | 32GB SSD | |||||||
Graphic | Intel® HD Graphics (854 MHz) | |||||||
Audio | Realtek HD ALC 662 | |||||||
LAN | Realtek RTL8111E | |||||||
External Ports (IP67 terminal) | 1*LAN | |||||||
1*USB2.0 | ||||||||
1*COM | ||||||||
1*DC-12V | ||||||||
Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
1*MiniPCI-E | ||||||||
Input Voltage | DC-12v | |||||||
Operating Temperature | ,-10℃ to +60℃ | |||||||
Driver | Windows, Linux; | |||||||
Display(mm) | 211.2 × 158.4 mm (A.A) | |||||||
Aspect Ratio | 4:3 | |||||||
Physical Resolution | 1024(W)*768(H) | |||||||
Brightness | 300 cd/m² | |||||||
Contrast Ratio | 800:1 | |||||||
React time | 2ms/6ms | |||||||
Visual angle | 85/85/85/85(L/R/U/D) | |||||||
Touch Panel | Projected capacitive touch panel(10 point touch) | |||||||
Touch Panel Driver | Windows, Linux, | |||||||
React time touch panel | <10 ms | |||||||
Surface Hardness | ≥6H | |||||||
Power Supply | AC100-240V,DC12V | |||||||
Cooling System | Fanless | |||||||
Protection grade | completely IP67 | |||||||
Install | VESA100x100mm | |||||||
Case | Aluminum |
