19 inch True Flat Touch Screen Panel Computer
19 inch True-Flat 10-points Capactive Touch Screen
Intel J1900 Quad core CPU, Multiple CPU options
Aluminium Construction
3mm thickness front bezel
Fanless Design
DC 12V power supply ( The wide power input of DC 9 ~ 36V is optional)
Model Number: EB-19LFZG
19 inch Industrial Touch Screen Panel Computer
The EB-19LFZG is All-in-one 19 inch Panel PC for industrial automation
RESUN 19 Industrial Panel PC Series is IP65 rated and optimized for use in demanding market applications including industrial machinery, utilities, petroleum, transportation, pipeline and food processing.
High performance embedded applications will benefit from the Intel Core J1900 2.0Ghz Quad-Core processor. The 19 inch Panel PC is designed and engineered to operate without a fan—even with the quad-core processor—resulting in quieter operation, lower maintenance, and increased product service life.
The Industrial Computer series is available in sizes: 8 inch, 10.4″, 12.1″, 15″, 17″, and 19, 21.5 inch, 23.6 inch etc.
| Display Specs | ||||
| LCD Display Size | 19″ LCD + PCAP Multi Touch Screen, Industrial Grade, TP: G+G | |||
| Touch Panel | 3mm Tempered Glass, 3H Hardness, Light Transmittance: ≥85% | |||
| Active Area (mm) | 383*308mm | |||
| Brightness | 400 nits | |||
| Contrast | 1000:1 | |||
| Aspect Ratio | 4:3 | |||
| Resolution | 1280*1024 | |||
| Viewing Angle | 89/89/89/89 | |||
| Display Color | 16.7M | |||
| Video Signal | By LVDS, high quality LVDS Cable. | |||
| Mainboard | ||||
| Processor | Intel Core J1900 2.0Ghz | |||
| Motherboard | SOC Thin ITX 170x170mm | |||
| Ram | 2GB DDR3 | |||
| Storage | 32gb mSATA | |||
| Expansion | 1*PCI-E, Support WiFi/3G/4G, Half Size | |||
| Ethernet | 1*RTL 8111F, 10/100/1000M | |||
| Speaker | 8ῼ2W*2 | |||

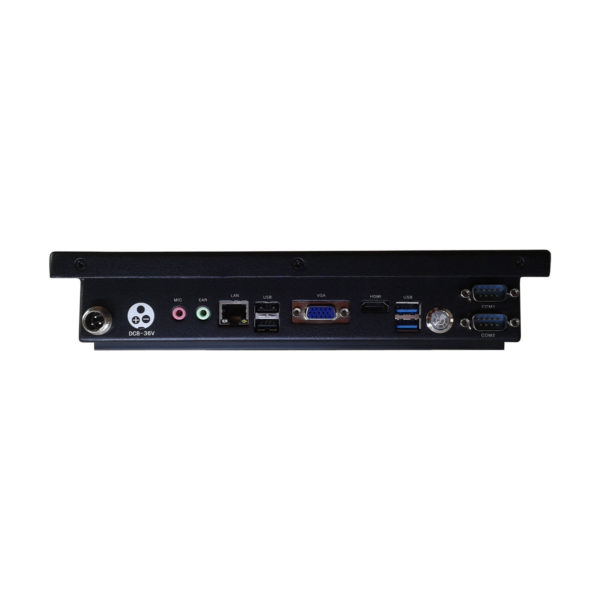

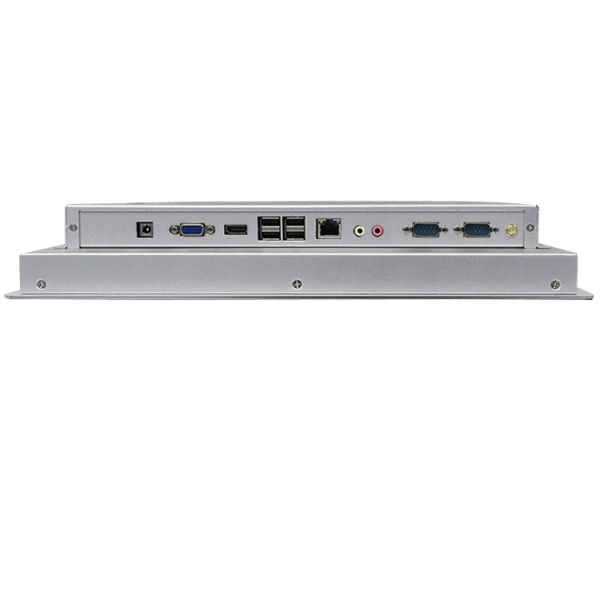

| Rear I/O | ||||
| VGA | 1 | |||
| HDMI | 1 | |||
| USB2.0 | 3 | |||
| USB3.0 | 1 | |||
| COM | RS232*2 (Optiona with 6*RS232) | |||
| RJ45 | 1 | |||
| Audio | 1* Line out + 1* Mic | |||
| OS | Windows or Linux OS | |||
| Power Supply Voltage | 100~240V AC input | |||
| Power Consumption | Less than 38W | |||
| Mechanics & Material | ||||
| IP Grade | IP65 Front Panel | |||
| PC Housing | Aluminum Plate, Powder Coating, Black or Silver Color | |||
| Mounting Method | VESA 100/75, Embedded installation | |||
| Environment | ||||
| Operation Tem. | -10°C~60°C | |||
| Operation Hum. | 10%~90% | |||
| Accessory | AC Cable, Manual & Driver in CD | |||
