Flat Screen Panel Mount Panel PC
Multi-touch 10.1 inch / 10.4 inch / 12.1 inch / 15 inch / 17 inch / 19 inch size range.
3mm Edge to Edge Tempered Glass Capacitive 10-point Touch Technology
IP65 rated front panel
True-flat screen
Based on Intel Celeron Processor J1900 quad cores
Model Number: EB-CPC104
True Flat Industrial Touch Screen Panel PC
This All-in-One Industrial Touch PC series is powered by the high performance Intel Celeron J1900 Quad core processor with support for up to 8GB of DDR3 memory, significantly faster and more efficient, it will deliver easy multitasking and enhanced performance.

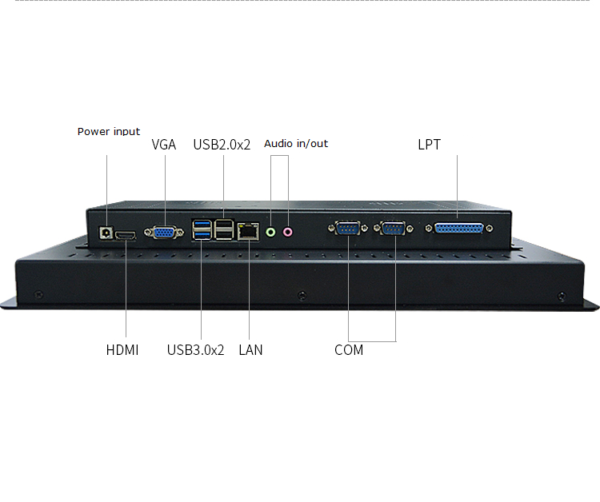

This Flat Panel PC is equipped with COM ports, USB ports, VGA port and HDMI-OUT, it can easily connect to other devices – from projectors at school to barcode readers and POS systems at a shop. The additional COM port supports a wide variety of devices.

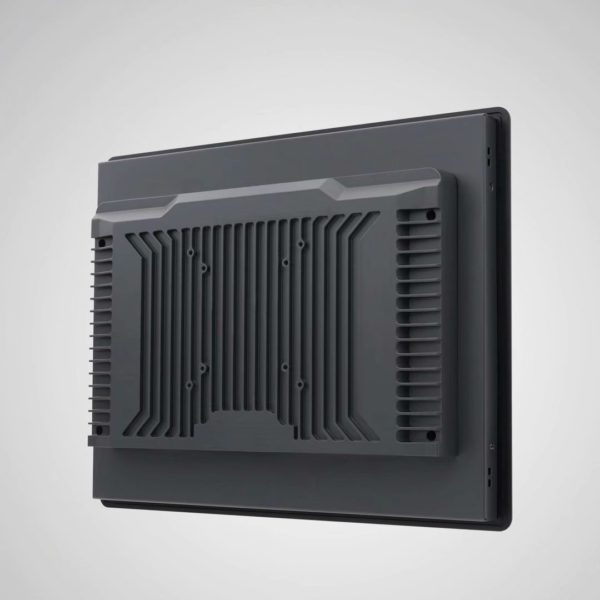

This true flat fanless panel pc provides a technological leap in multi-touch interactivity, with full 10-finger capacitive multi-touch capability.
| LCD | Industrial LED LCD display | |
| Backlight | LED Backlight | |
| LED MTBF | 50000h | |
| LCD Display | ResoLution | 1024*768 |
| Aspect Ratio | 4:3 | |
| Brightness | 300cd | |
| Contrast | 1000:01:00 | |
| View angle | R/L:65(Typ.), U/D:65(Typ) | |
| Display Area | 246×184.5mm | |
| Touch Panel | Industrial 10 points P-CAP Touch Screen | |
| Touch Screen | Response | ≤5ms |
| Transparence | 85±5% | |
| surface hardness | ≥3H | |
| CPU | Intel J1800 /J1900 CPU | |
| RAM | DDR3：2G | |
| SSD | SSD 32G Optional | |
| USB | 4 | |
| HDMI | 1 | |
| COM | 2*RS232 | |
| Mainboard | VGA | 1 |
| Lan | RJ45*1 | |
| Speaker | 1 | |
| Power supply | DC 12V input | |
| Wi-Fi | Optional at additional cost | |
| OS | support Windows/Linux |
