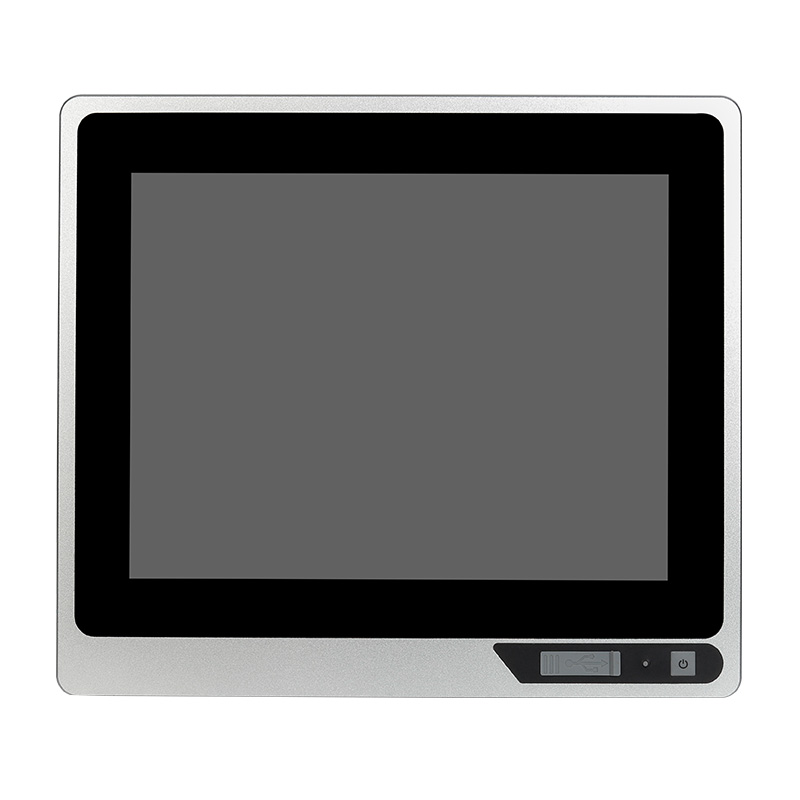

15″ Industrial Panel PC
15 inch 4:3 TFT LCD panel
1024 * 768 pixels resolution
Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
2 Ethernet Lan ports,
2*USB2.0, 2*USB3.0
12V DC power supplort (Wide-range power is optional)
Wide operating temperature
Rugged aluminum enclosure

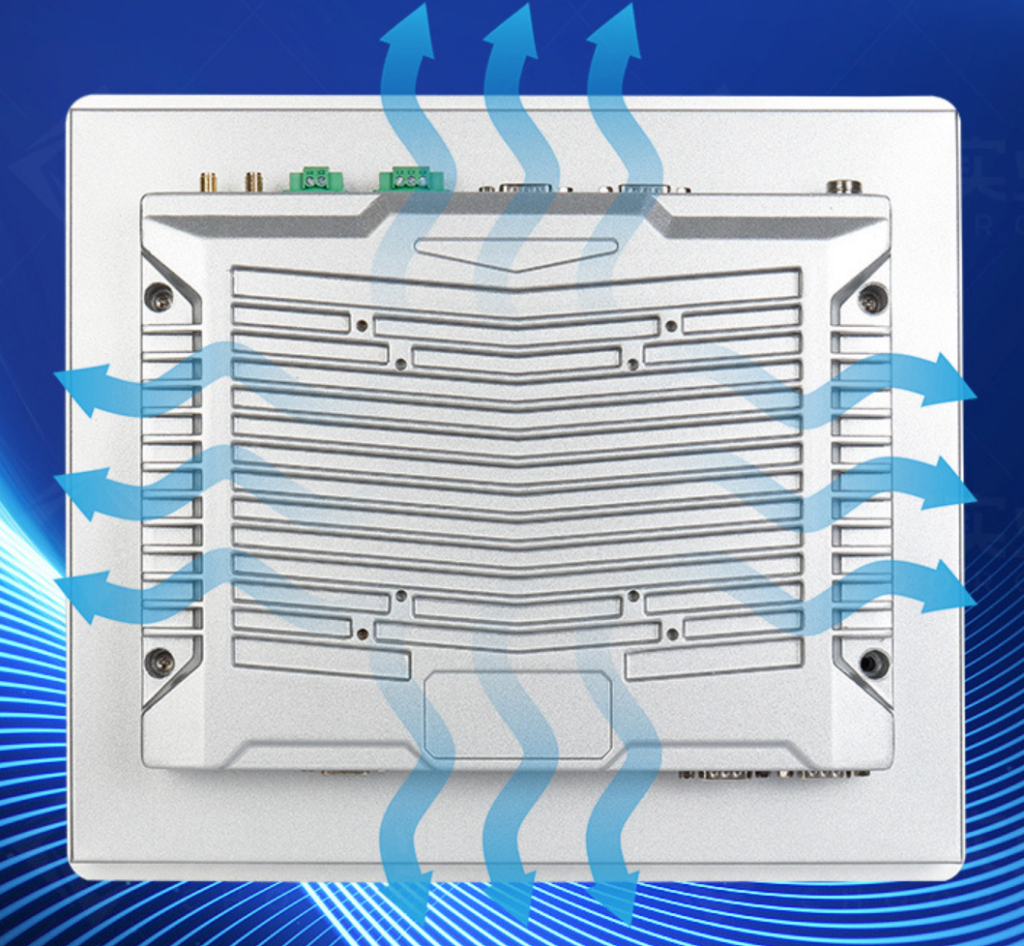

Fanless cooling design
IP65 compliant (front panel)
Windows or Linux OS support

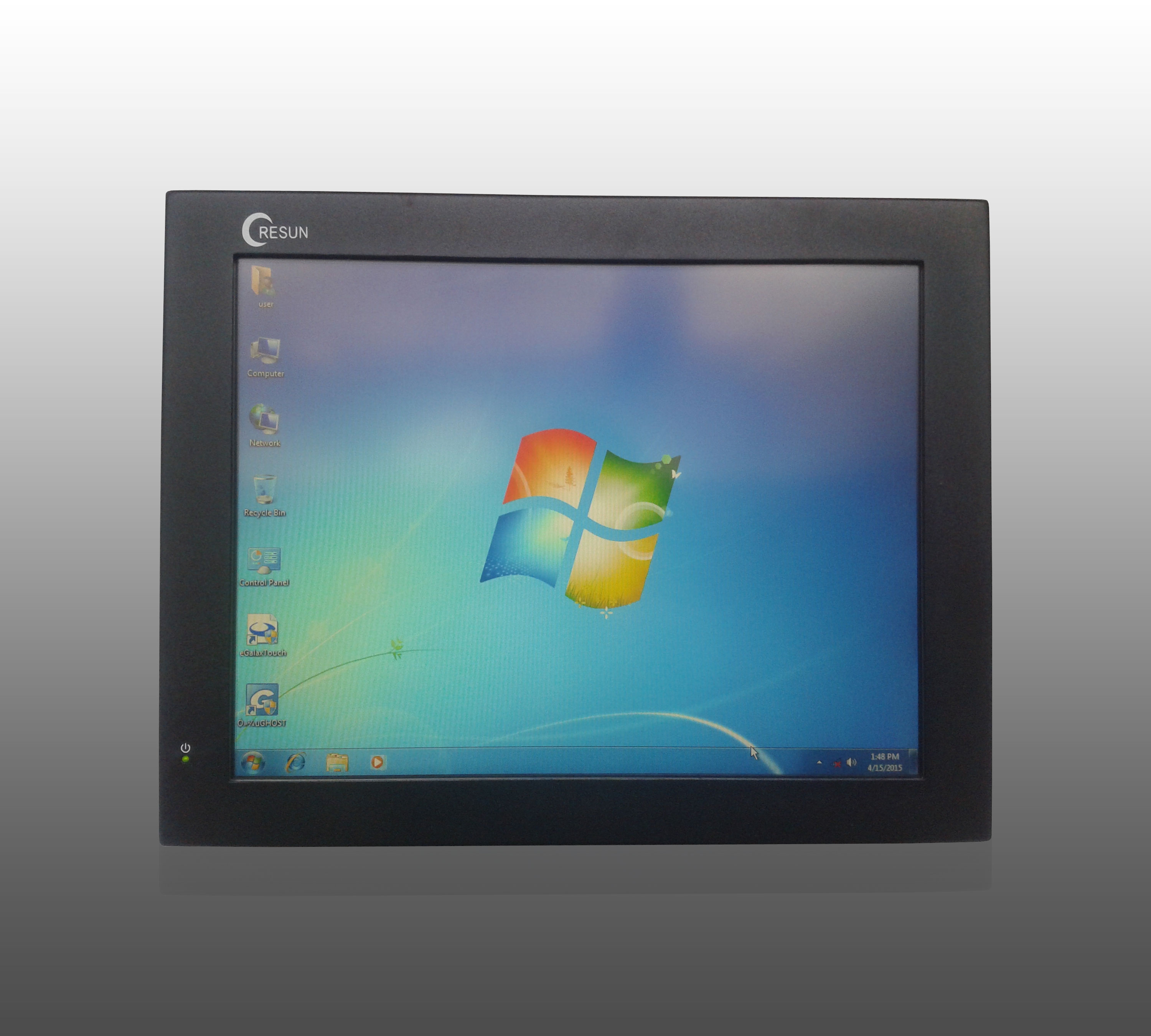

15″ Industrial Fanless Panel PC is a open-platform touch screen computer based on Windows or Linux operating system.
With LED backight 1024*768 high-resolution up to 1920（W)*1200(H) high-contrast TFT LCD, The 15 inch Panel PC analog touchscreen has infinite touch response points. This Fanless Industrial Touch Panel PC has an Intel Dual-Core or quad core processor. It contains 4 GB of DDR3 memory,
With connectivity that gives you options, this 15 inch panel mount Panel PC has 2 Ethernet LAN, available for RS-232 and RS-232/422/485 serial ports and 4 USB 2.0 ports. Also, this IP65 front panel rugged Panel PC contains a durable metal enclosure, and a sturdy metal bezel.
| O/S | drivers for Windows/Linux operating systems included | |||||||
| CPU | Intel Atom N2600, 1.6GHZ or Intel J1900 2.0GHZ | |||||||
| Chipsets | North bridge: Intel NM10 | |||||||
| RAM | 1*2GByte DDR3-1333 | |||||||
| Hard Drive | 32GByte 2.5 Inch SATA2 SSD | |||||||
| Graphic | Intel GMA3650,640MHz | |||||||
| Audio | Realtek HD ALC 269Q, 2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports | |||||||
| USB | 7* USB 2.0 ports, 4 as external | |||||||
| External Ports | HDMI | |||||||
| 4*USB 2.0 | ||||||||
| 2* COM/RS232 （1 RS232 replaceable for RS422/485） | ||||||||
| 2*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| W-LAN-Antenna connectors | ||||||||
| Power on/off | ||||||||
| 2*12V DC-in(1*screwable) | ||||||||
| Internal port | 2*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| 1*VGA | ||||||||
| 3* USB2.0 | ||||||||
| 6*COM/RS 232 header; COM1, COM2 used as external connectors, COM2 switchable between RS232/RS485 via jumper JC3 | ||||||||
| 1* Front panel Audio header(for loudspeaker) | ||||||||
| 1* Front panel header | ||||||||
| Power consumption(W) | 36 | |||||||
| Stand-By-Consumption (W) | ≤1 | |||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temp. | -10℃ to +60℃ | |||||||
| Storage Temp | -10℃ to +70℃ | |||||||
| Driver | Windows, Linux; Linux Ubuntu OS support | |||||||
| Display(mm) | 305.5×229.5 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Maximum knowable resolution | 1920（W)*1200(H) | |||||||
| Luminance(cd/㎡) | 250 | |||||||
| Contrast Ratio | 800:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle h:v(°) | 160;160 | |||||||
| Touch Panel | 5 wire resistive touch | |||||||
| Touch Panel Driver | Windows, Linux, Marc | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | 3H | |||||||
| Input Force(g) | 20-150 | |||||||
| Power Supply | AC100-240V,DC12V | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Installation | Panel,Wall,Rack,Stand,Arm VESA100 (optional) | |||||||
| Case | Aluminum | |||||||
| Size(WxHxD)(mm) | 368x288x62.8 | |||||||
