Fanless Panel PC

industrial touch screen panel pc

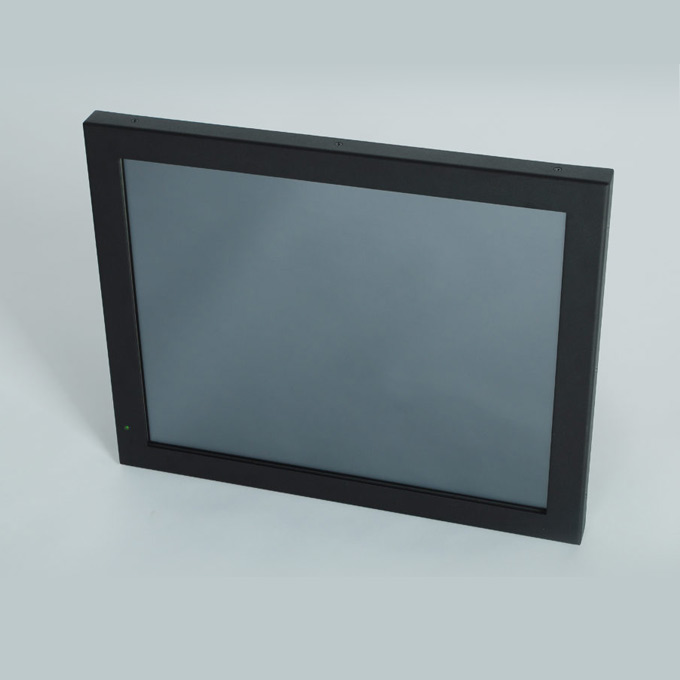

17 inch Fanless Industrial Panel PC

Aluminum front panel & PC Case
17″ TFT LCD panel display with touch screen
Wireless LAN module (optional)
Onboard graphics
COM, USB ports, Dual ethernet controller
SSD
Fanless and Slim design.

Model Number: EB-17PC

SEND INQUIRY Category: Industrial Panel PC

Description
Download
SEND INQUIRY

17″ SXGA TFT LCD Industrial Touch Screen Panel Computer

O/S			drivers for Windows/Linux support
CPU			Intel Celeron Processor J1900(2M Cache, up to 2.42 GHz)Quad core
RAM			4GB DDR3
Hard Drive			32GB SSD
Graphic			Intel® HD Graphics
Audio			Realtek HD ALC 269Q, 2*2W Loudspeaker
LAN			Realtek RTL8111E,

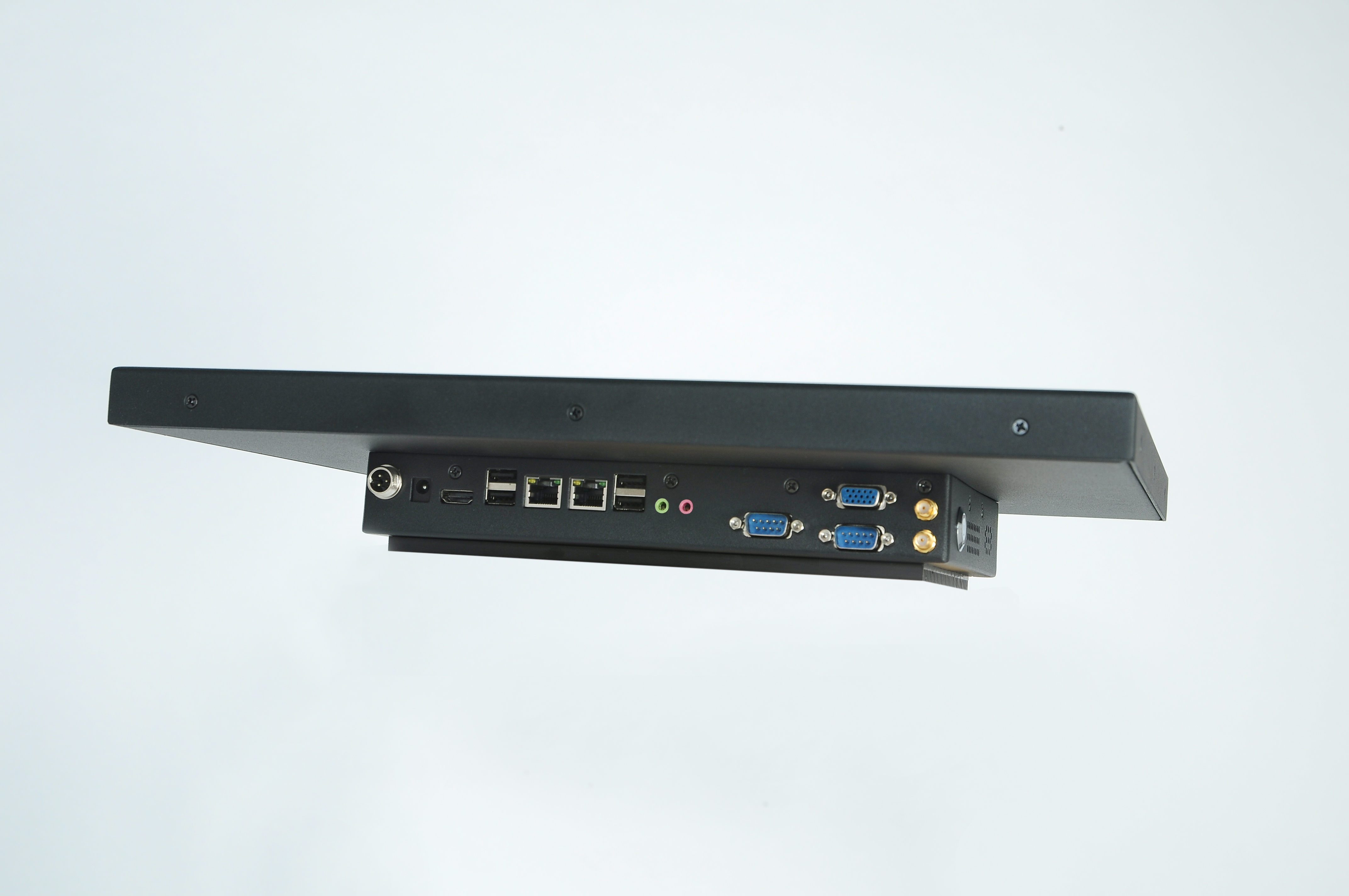

External Ports			HDMI
			4USB (2USB 2.0 + 2*USB 3.0)
			VGA
			1*RJ45 (10/100/1000MBit)
			2* COM/RS232 （1 RS232 replaceable for RS422/485）
			Audio-in/ Audio-out
			Power on/off
			212V DC-in(1screwable)
Input Voltage			11-13V DC-in
Operating Temperature			,-10℃ to +60℃
Driver			Windows, Linux; Linux Ubuntu 9.04 preinstalled
Display(mm)			339.5×272
Aspect Ratio			4:3
Physical Resolution			1280（W)*1024(H)
Brightness			250
Contrast Ratio			800:1
React time			2ms/6ms
Visual angle h:v(°)			160;160
Touch Panel			5 wire resistive touch screen
Touch Panel Driver			Windows, Linux, Marc
React time touch panel			<10 ms
Surface Hardness			3H
Input Force(g)			20-150
Power Supply			AC100-240V,DC12V
Cooling System			Fanless
Front Panel			IP65
Install			Panel,Wall,Rack,Stand,Arm VESA100
Case			Aluminum
Size(WxHxD)(mm)			397x325x65.5
Optional			W-lan optional
			6*COM
			Saw touch panel
			IP65 class
			ITPS
			Bluetooth 2.0
			6-36V power supply
			Advanced RAM and SSD/HDD
