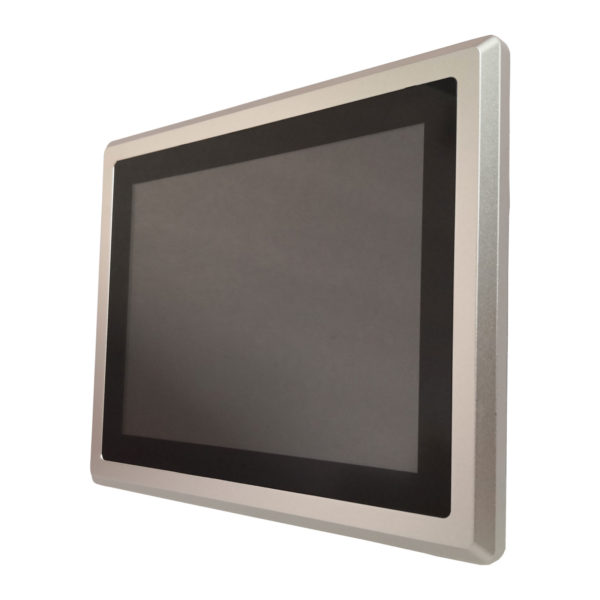

8 inch Industrial Panel PC

8 inch True-Flat Panel Touch Screen
High Brightness 800 nits LCD display
Intel Celeron J1900 Quad-Core CPU
Low Power consumption with Fanless Design
Onboard DDR3L RAM
IP67 rate Front with Aluminum Housing
Support VESA mount 75* 75 & 100*100, panel mount

Model Number: EB-LJ80

SEND INQUIRY Category: Industrial Panel PC

Description
Video Demo
SEND INQUIRY

8″ FANLESS PANEL PC

Intel quad-core based Industrial Panel PC series with multi-touch projected capacitive (PCAP) touch screen and 800 nits brightness, IP67 front panel in 9.7″, 10.4″, 12.1″, 15″, 17″, 19″ and widescreen 18.5″ etc.

O/S Support			Linux / Windows
CPU			Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipsets			Intel® Bay Trail SOC
RAM			2GByte DDR3-1333
Hard Drive			64GB SSD
Graphic			Intel® HD Graphics (854 MHz)
Audio			Realtek HD ALC 662
LAN			Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports

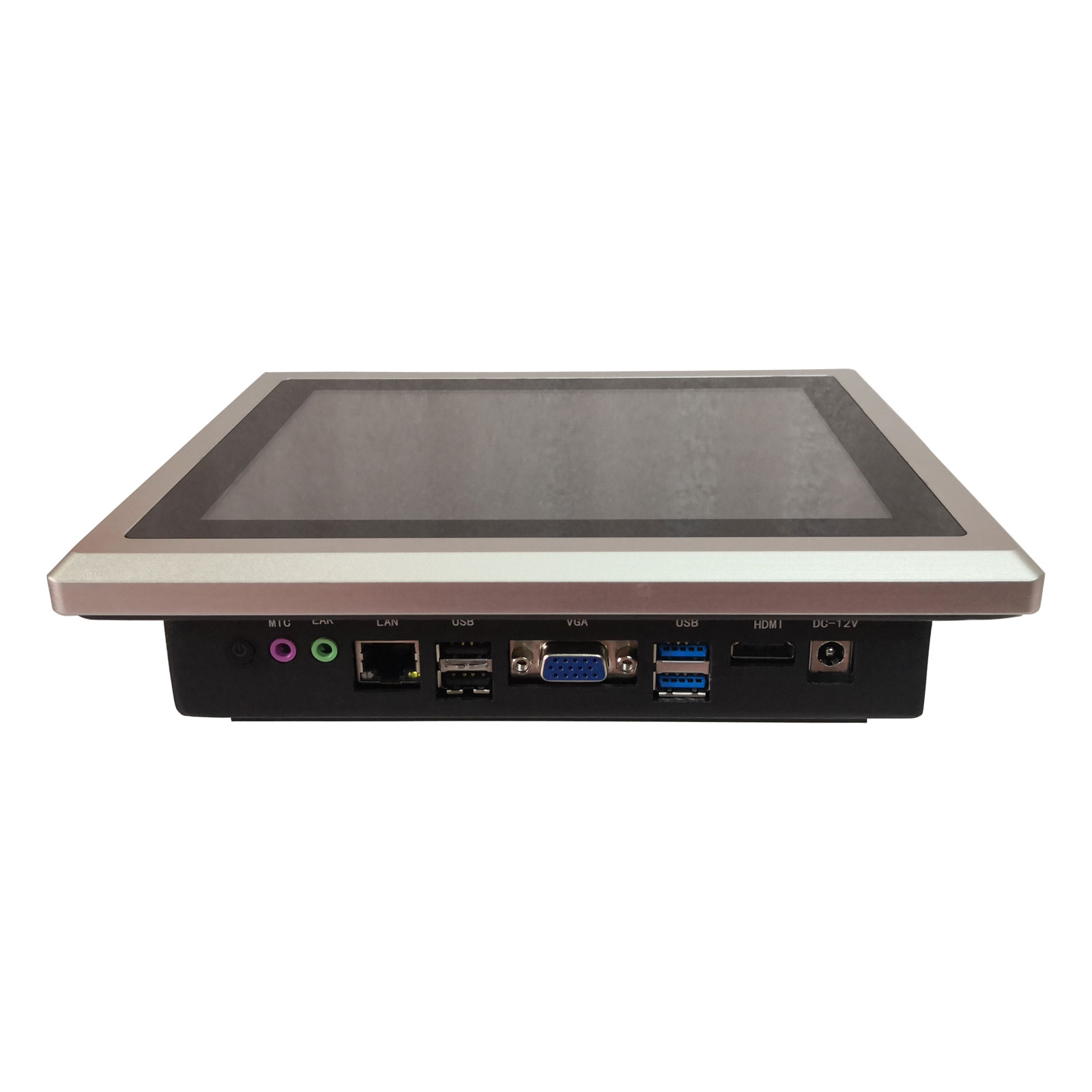

External Ports			HDMI
			2*USB2.0
			2*USB3.0
			1*RJ45
			VGA
			Line out
			MIC
			Power on/off
			DC-12V
Internal port			1Sata 300MB/S (1MSATA)
			1*MiniPCI-E
Input Voltage			12V DC-in
Operating Temperature			,-10℃ to +60℃
Driver			Windows, Linux;
Display(mm)			162×121.5
Aspect Ratio			4:3
Physical Resolution			800（W)*600(H)
Brightness			800 cd/m²
Contrast Ratio			500:1
React time			10/15 (Typ.)(Tr/Td) ms
Visual angle			70/70/50/70(L/R/U/D)
Touch Panel			Projected capacitive touch panel(10 point touch)
Touch Panel Driver			Windows, Linux,
React time touch panel			<10 ms
Surface Hardness			≥6H
Power Supply			AC100-240V,DC12V
Cooling System			Fanless

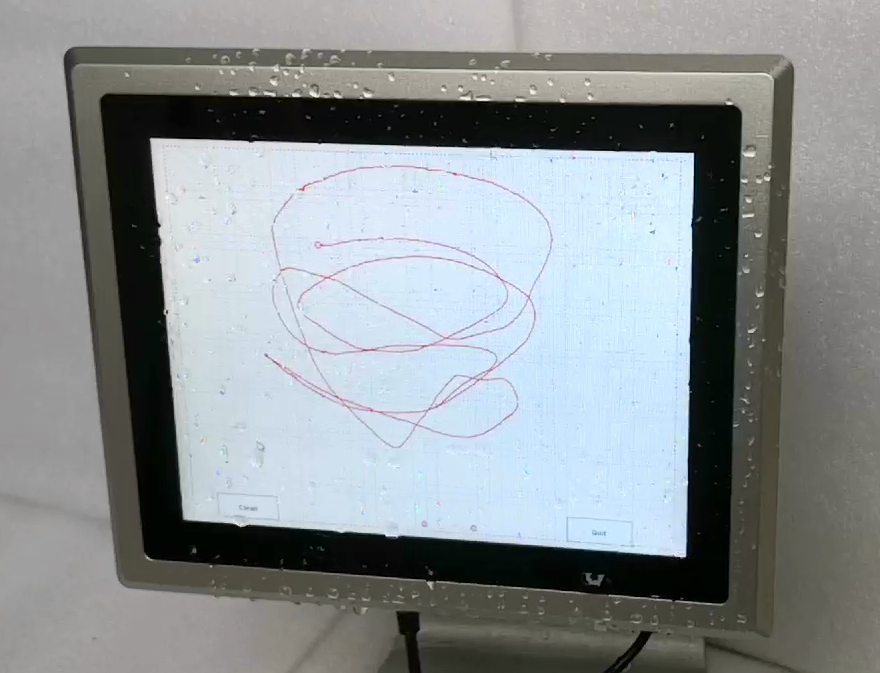

Front Panel			IP67
Install			VESA, Panel mount, Wall mount, Desktop, Embedded
Case			Aluminum ,steel sheet
Optional			W-lan optional
			Resistive touch
			IP65 class
			Bluetooth 2.0
			Advanced RAM and SSD/HDD
