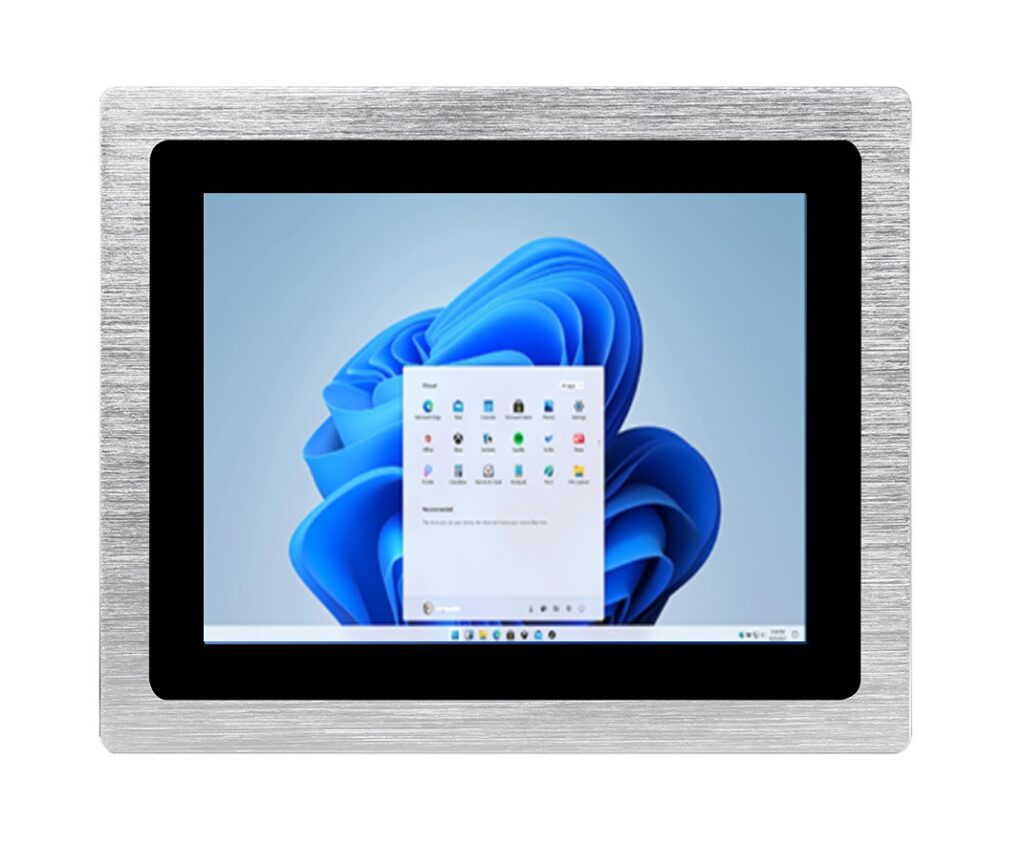

8 inch Fanless Panel PC
Easily fits into almost any chassis or integrates into embedded applications. This Industrial Touch Screen Panel PC is Perfect for your industrial automation environments.
| O/S | drivers for Windows/Linux operating systems included | |||||||
| CPU | Intel Atom N2600, 1.6GHZ（or 4 cores Intel J1900) | |||||||
| Chipsets | North bridge: Intel NM10 | |||||||
| RAM | 1*2GByte DDR3-1333 | |||||||
| Hard Drive | 32GByte 2.5 Inch SATA2 SSD(or 32GByte MSATA SSD On the inside) | |||||||
| Graphic | Intel GMA3650,640MHz | |||||||
| Audio | Realtek HD ALC 269Q, 2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 2*10/100/1000MBit RJ45 Ports | |||||||
| USB | 7* USB 2.0 ports, 4 as external | |||||||
| External Ports | HDMI | |||||||
| 4*USB 2.0 | ||||||||
| 2* COM/RS232 （1 RS232 replaceable for RS422/485） | ||||||||
| 2*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| W-LAN-Antenna connectors | ||||||||
| Power on/off | ||||||||
| 2*12V DC-in(1*screwable) | ||||||||
| Internal port | 2*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| 1*VGA | ||||||||
| 3* USB2.0 | ||||||||
| 6*COM/RS 232 header; COM1, COM2 used as external connectors, COM2 switchable between RS232/RS485 via jumper JC3 | ||||||||
| 1* Front panel Audio header(for loudspeaker) | ||||||||
| 1* Front panel header | ||||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; Linux | |||||||
| Display(CM) | 16.25×12.2 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Native Resolution | 800（W)*600(H) | |||||||
| Brightness | 250 | |||||||
| Contrast Ratio | 500:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle h:v(°) | 150;130 | |||||||
| Touch Panel | 4 wire resistive touch(USB or RS232) | |||||||
| Touch Panel Driver | Windows, Linux, Marc | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | 3H | |||||||
| Input Force(g) | 20-150 | |||||||
| Power Supply | 100-240V,12V | |||||||
| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
Brand new design in 8″ touch display.
