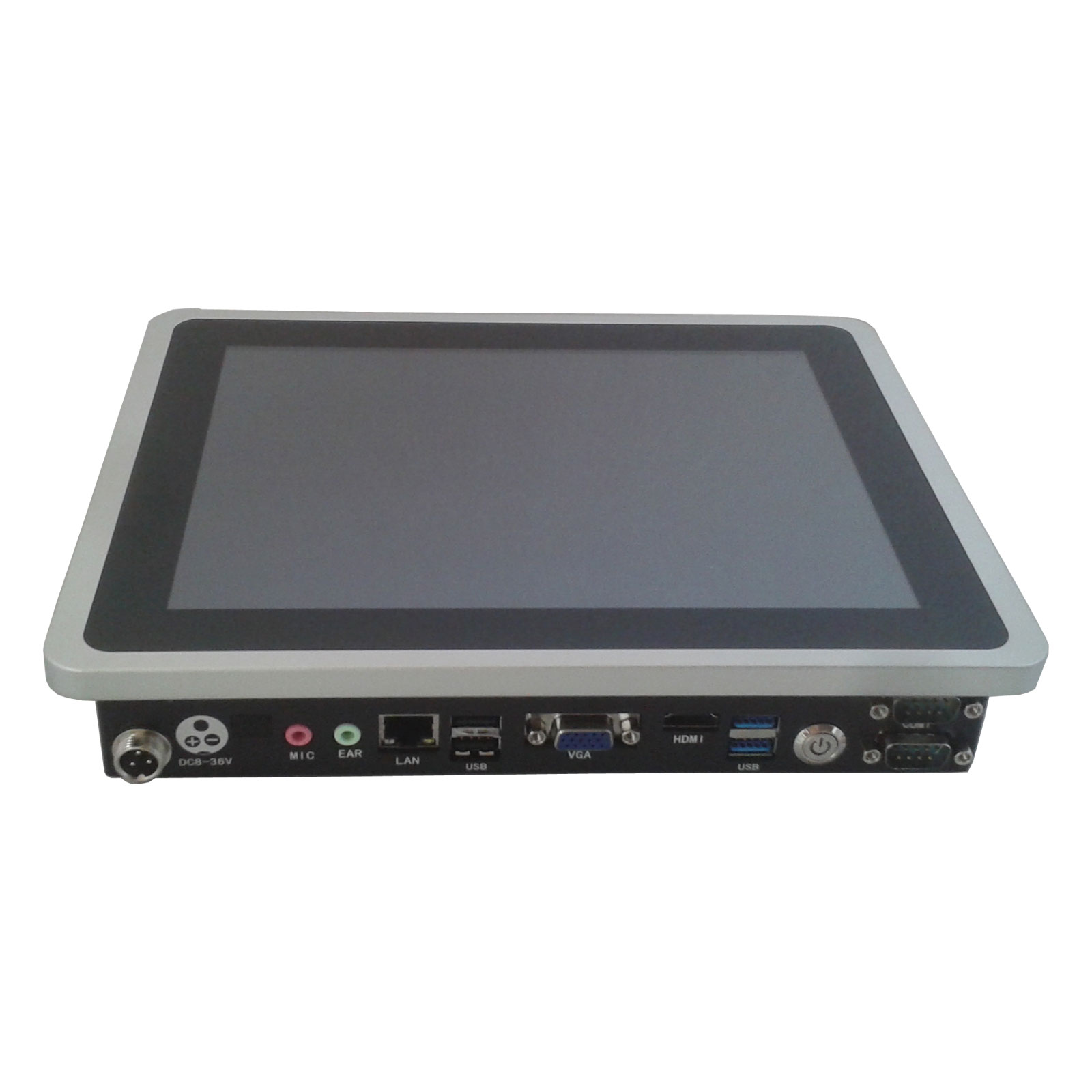

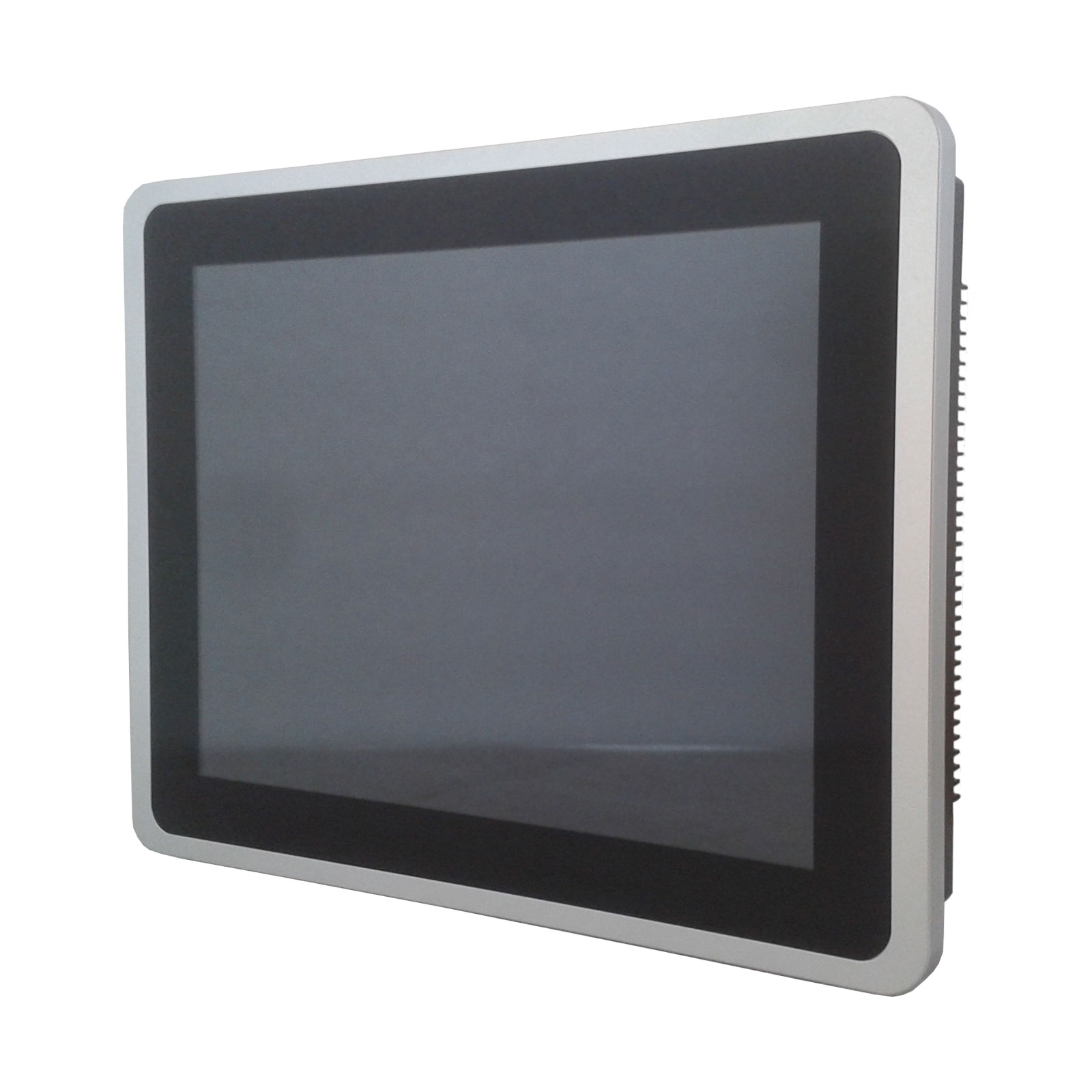

9.7 inch Flat Screen Panel PC
EB-97FCPC is a 9.7 inch Flat Screen fanless Panel PC featuring Intel J1900 quad-core processor. The CNC designed distinct aluminum case gives the system an understated luxury and elegant look.
This industrial panel pc also featuring a bright TFT-LCD with LED backlight display and true flat 10-point projective capacitive multi-touch front panel that’s IP65 compliant, which is easy to maintain and clean, to prevent water or liquid droplets to penetrate into the PC case.
It is powerful enough to use it as a Controller for a CNC Machine.
| O/S | support Linux, Windows | |||||||
| CPU | Intel® Celeron® Processor J1900 Quad core | |||||||
| Chipsets | Intel® HM65 | |||||||
| RAM | 1*2GByte DDR3-1333 | |||||||
| Hard Drive | 32GB SSD | |||||||
| Graphic | Intel® HD2500 | |||||||
| Audio | Realtek HD ALC 662 ,2*2W Loudspeaker | |||||||
| LAN | Realtek RTL8111E, 1*10/100/1000MBit RJ45 Ports | |||||||
| External Ports | HDMI | |||||||
| 4*USB2.0 | ||||||||
| 2* COM | ||||||||
| 1*RJ45 | ||||||||
| VGA | ||||||||
| Audio-in/ Audio-out | ||||||||
| Power on/off | ||||||||
| 2*12V DC-in(1*screwable) | ||||||||
| Internal port | 1*Sata 300MB/S (1*MSATA) | |||||||
| 1*MiniPCI-E | ||||||||
| Input Voltage | 11-13V DC-in | |||||||
| Operating Temperature | ,-10℃ to +60℃ | |||||||
| Driver | Windows, Linux; | |||||||
| Display(mm) | 211.2×158.4 | |||||||
| Aspect Ratio | 4:3 | |||||||
| Physical Resolution | 1024（W)*768(H) | |||||||
| Maximum knowable resolution | 1920（W)*1440(H) | |||||||
| Brightness | 300 | |||||||
| Contrast Ratio | 600:1 | |||||||
| React time | 2ms/6ms | |||||||
| Visual angle | 70/70/50/70(L/R/U/D) | |||||||
| Touch Panel | 9.7″ 10-point Projected capacitive touch screen panel | |||||||
| Touch Panel Driver | Windows, Linux, | |||||||
| React time touch panel | <10 ms | |||||||
| Surface Hardness | ≥3H | |||||||
| Power Supply | AC100-240V,DC12V | |||||||

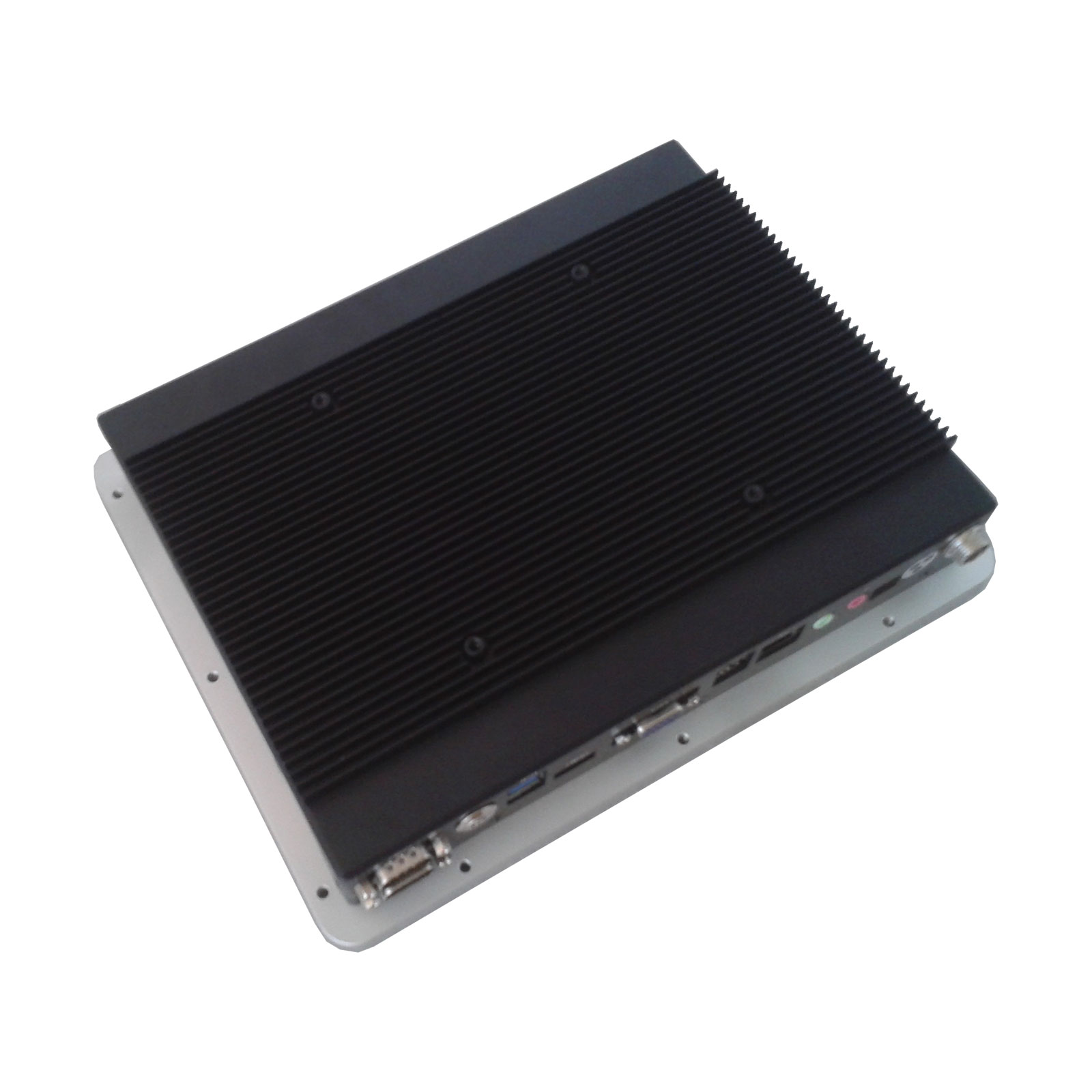

| Cooling System | Fanless | |||||||
| Front Panel | IP65 | |||||||
| Install | Arm VESA100,Panel,Wall,Rack,Stand, | |||||||
| Case | Aluminum ,steel sheet | |||||||
| Size(WxHxD)(mm) | 258x205x53.5 | |||||||
