RFID touch screen terminal

RFID panel pc

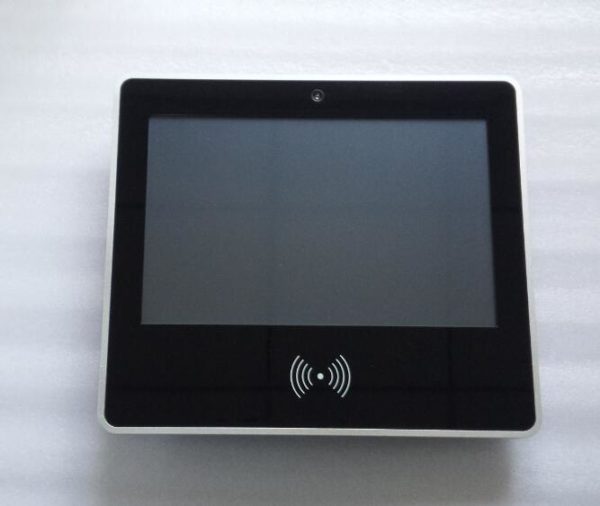

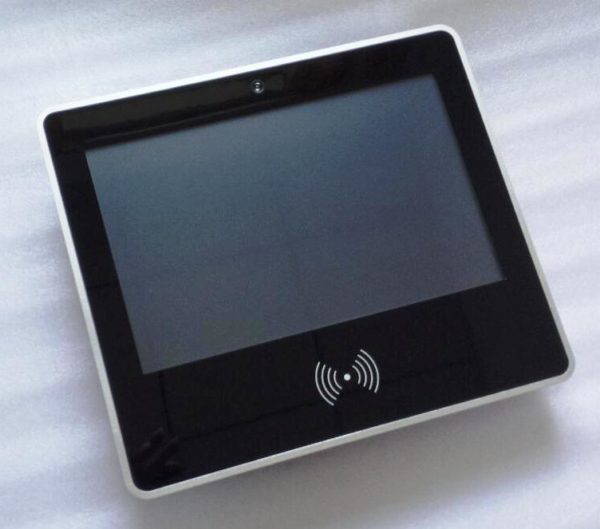

12.1 inch RFID Touch Screen Panel PC with Camera

Industrial Touch Screen Panel PC Built-in RFID reader is catering for access control and time attenedance.

* 12.1 inch 1280*800 LCD Display; Touch Screen
* Intel Baytrail J1900 quad-core;
* Integrated with RFID card reade available from 125 khz to 13.56 MHz
* Fanless designed, Wall mounting, IP65 Front Panel protection,
* Support Linux or Windows OS
* Built-in Camera, Built-in Fingerprint Scanner (optional)

Model Number: EB-121RACAM

SEND INQUIRY Category: RFID Panel PC

Description
Download
SEND INQUIRY

12.1″ Touch Screen, Windows/Linux Fanless Panel PC,Integrated with RFID reader, built-in Camera, Wi-Fi

O/S			Linux / Windows
CPU			Intel® Celeron® Processor J1900 (2M Cache, up to 2.42 GHz)
Chipsets			Intel® Bay Trail SOC
RAM			4GByte DDR3L-1600
Hard Drive			32GB SSD
Graphic			Intel HD Graphics Gen7
Audio			Realtek HD ALC 662 ,2*2W Loudspeaker
LAN			Intel I211AT , 2*10/100/1000MBit RJ45 Ports

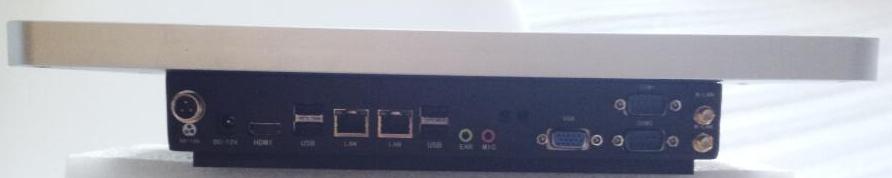

External Ports			HDMI
			3*USB2.0
			1*USB3.0
			2* COM
			1*RJ45
			VGA
			Line out
			MIC
			WIFI antenna
			Power on/off
			DC-in(12V)
Internal port			1Sata 300MB/S (1MSATA)
			1*MiniPCI-E
Input Voltage			12V DC-in
Operating Temperature			,-10℃ to +60℃
RFID			125Khz / ID card (EM4100)
			13.56Mhz / IC card (ISO14443A)
Camera			5 million pixels
Driver			Windows, Linux;
Display(mm)			261.12×163.2
Aspect Ratio			16:10
Physical Resolution			1280（W)*800(H)
Brightness			400
Contrast Ratio			800:1
React time			30 (Typ.)(Tr+Td) ms
Visual angle			80/80/65/80(L/R/U/D)
Touch Panel (Optional)			5 wire Resistive touch panel
Touch Panel Driver			Windows, Linux,
React time touch panel			<10 ms
Surface Hardness			≥3 H( Resistive touch panel)
Cooling System			Fanless
Front Panel			IP65
Install			VESA100x100 , Embedded , Panel , Wall , Rack , Stand
Case			Aluminum ,steel sheet
